EPDM Bonded Washer vs Neoprene Washer: Which Is Better for Outdoor Applications?

For outdoor fasteners exposed to sunlight, rain, and ozone, EPDM bonded washers are usually the better choice. EPDM holds up to weather-related aging better than Neoprene (CR), which is why it is a common pick for metal roofing, exterior fastening, and other exposed sealing points.

Neoprene becomes the better option when the washer also contacts petroleum-based oils or lubricants. Before choosing either material, confirm the exposure conditions, the washer construction, and the dimensions the fastener needs.

What Is the Difference Between EPDM and Neoprene Washers?

EPDM (Ethylene Propylene Diene Monomer) and Neoprene (Chloroprene Rubber, CR) are two synthetic rubbers used in sealing components. EPDM has stronger resistance to UV, ozone, and outdoor weathering. Neoprene handles certain petroleum-based oils better.

In a bonded washer, the rubber sealing layer is attached to a metal washer. When the fastener is tightened, the rubber compresses against the installation surface, and the metal backing distributes the load.

KCS Enterprise offers EPDM and Neoprene (CR) options in its Bonded® Washer Series.

A bonded metal-and-rubber washer is not the same as a rubber-only washer. Picking the right rubber compound does not remove the need to match the washer construction to the fastening assembly.

EPDM vs Neoprene: Key Material Differences

The comparisons below describe general material characteristics, not tested performance figures for KCS products. Actual performance depends on the rubber compound and operating conditions.

Which Material Has Better Weather Resistance?

EPDM holds up better under long-term UV and ozone exposure. For roofing screws and exterior fasteners, it is the usual choice when weather-related aging is the main concern.

If existing washers have hardened, cracked, or lost sealing contact, check the rubber and the installation surface before ordering replacements. Switching from Neoprene to EPDM will not fix leaks caused by wrong dimensions, damaged panels, or improper tightening.

Which Material Has Better Oil Resistance?

Neoprene resists certain petroleum-based oils better than EPDM. Contact with mineral oils, petroleum-based lubricants, or fuels can cause EPDM to swell or break down.

Neoprene is not suitable for every oil-contact application. Continuous immersion, high temperatures, or aggressive fluids may call for another elastomer, such as NBR or FKM.

Identify the actual fluid, operating temperature, and how often the rubber contacts it before specifying the material.

For more on fluid compatibility and sealing failures, read Why Do Hydraulic Fittings Still Leak After Tightening?.

Which Washer Should You Choose for Outdoor Applications?

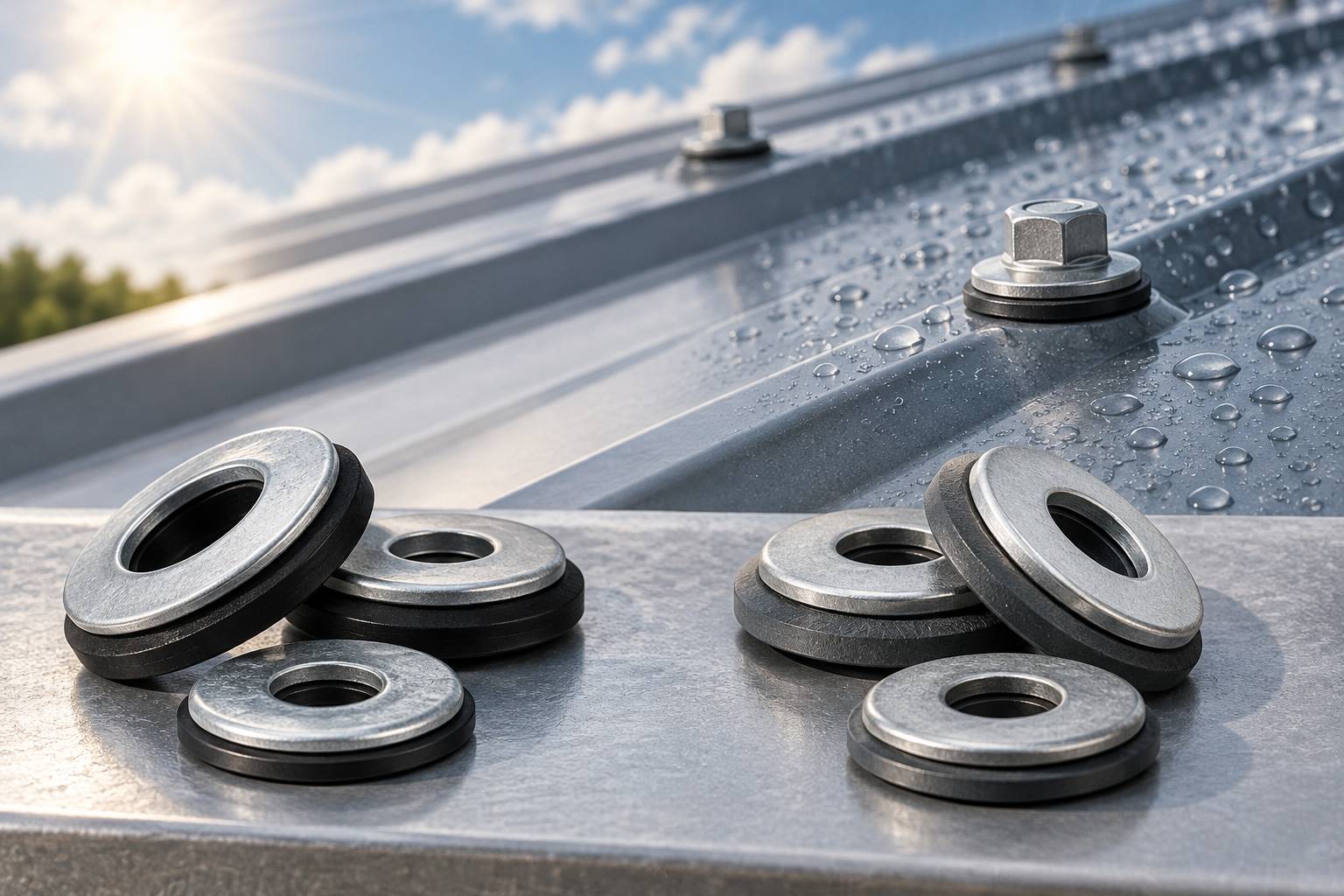

Metal Roofing and Exterior Fasteners

Choose EPDM bonded washers for roofing screws and exterior fasteners that are exposed to sunlight, rain, and ozone.

The rubber has to compress against the metal panel to seal the screw hole. Check the washer's inside diameter, outside diameter, rubber thickness, and the contact with the panel surface.

For existing leaks, inspect the rubber for cracking or permanent deformation, and check whether the washer has enough compression. A material change by itself will not solve a fit or installation problem.

For more on this, read How Do Bonded Sealing Washers Prevent Leakage in Roofing Systems?.

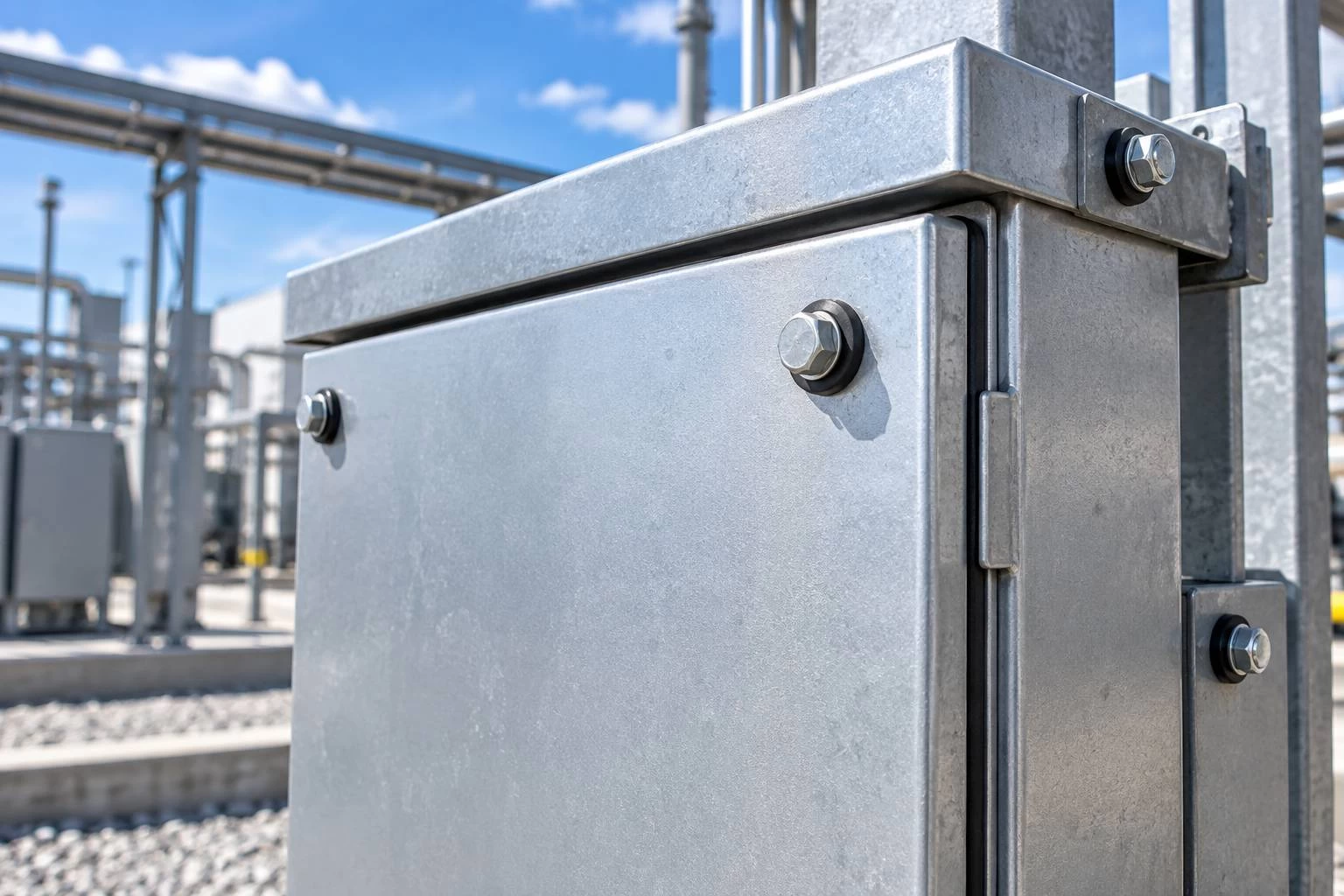

Outdoor Industrial Equipment

For outdoor equipment and enclosures, match the rubber to the actual exposure:

• Sunlight, rain, and ozone without petroleum-based oil contact: EPDM is the usual choice.
• Occasional contact with petroleum-based lubricants: consider Neoprene (CR).
• Continuous oil contact or aggressive fluids: check chemical compatibility and look at other elastomers if needed.

Also confirm whether the fastening assembly needs a bonded metal-and-rubber washer or a separate rubber sealing component.

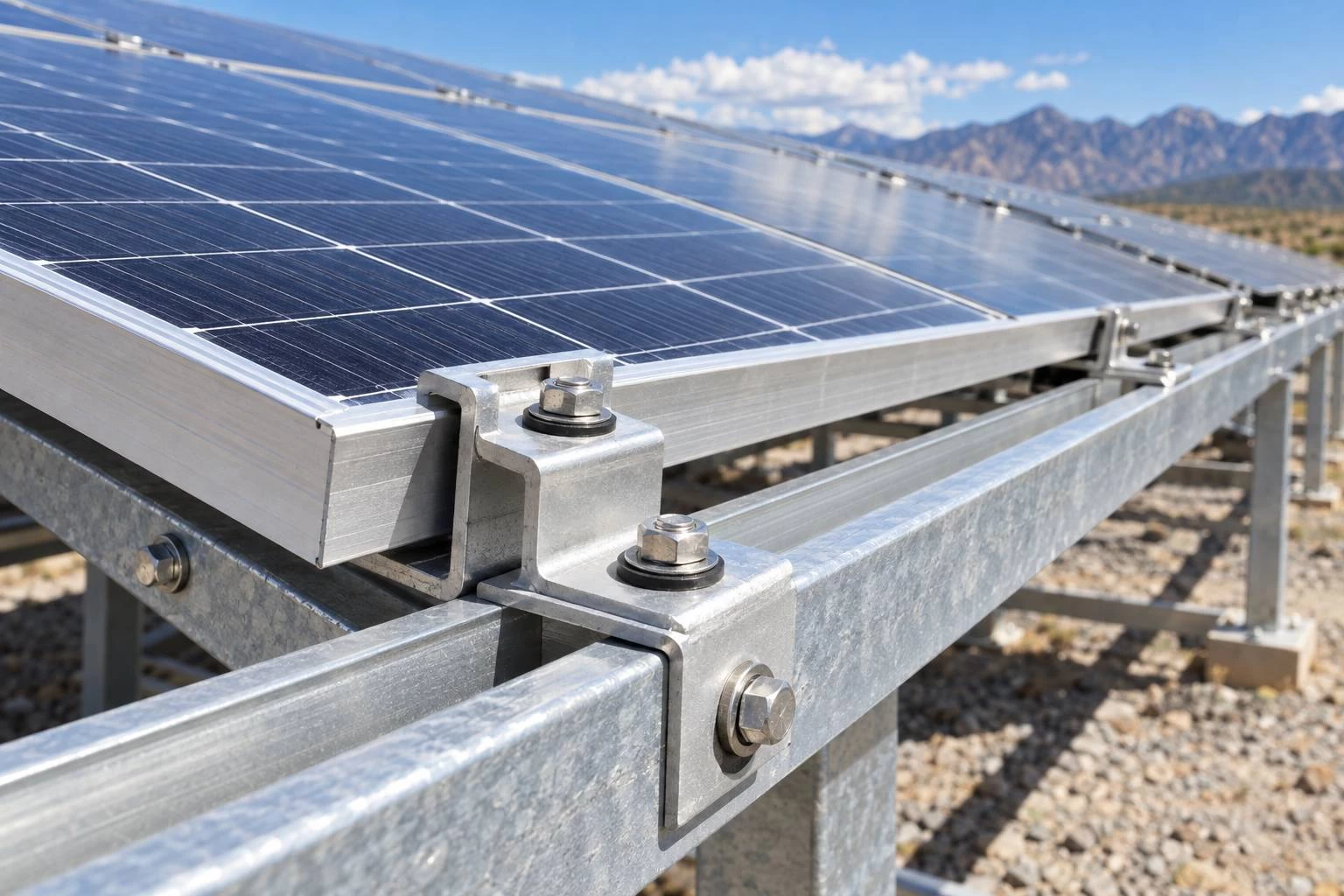

Solar Mounting Structures

EPDM is a common choice for solar mounting fasteners that face long-term sunlight, rain, and temperature changes.

Confirm the fastener size, mounting surface, sealing area, and installation method. A washer designed for a flat surface may not seal properly against a curved or profiled metal panel.

What Information Should Buyers Provide When Ordering Washers?

Prepare the following details to help the supplier identify a suitable standard or custom washer.

1. Operating Conditions

• Indoor or outdoor installation
• Operating temperature range
• Exposure to sunlight, rain, or ozone
• Name of any oil, lubricant, or chemical that contacts the rubber
• Continuous or occasional fluid contact

For oil-contact applications, give the fluid name rather than asking for an unspecified "oil-resistant" washer.

2. Washer and Fastener Dimensions

• Inside diameter (ID)
• Outside diameter (OD)
• Overall washer thickness
• Rubber thickness or sealing geometry, if specified
• Screw size or fitting dimensions
• Technical drawing or physical sample, if available

Check the dimensions against the fastener and sealing surface. An oversized ID can reduce sealing contact around the screw. An undersized OD may not cover the required sealing area.

For CR and EPDM rubber washer specifications, see KCS Enterprise's Cutting Washer Series, which includes published dimensions for selected screw sizes.

3. Metal Material and Washer Construction

Specify the preferred metal, the corrosion exposure, and whether the assembly needs a bonded washer or a rubber-only component.

KCS Enterprise lists galvanized steel, Galvalume steel, stainless steel, aluminum, copper, and titanium among the metal options for its Bonded® Washer Series.

EPDM and Neoprene Bonded Washers from KCS Enterprise

KCS Enterprise is a Taiwan-based manufacturer of bonded washers and rubber-to-metal sealing components, in operation since 1983.

Its Bonded® Washer Series includes EPDM, Neoprene (CR), and other rubber material options, with a choice of metal materials. KCS also supports OEM and ODM work for custom washer dimensions, material combinations, and sealing configurations.

Share your drawing or sample, required dimensions, materials, operating conditions, and estimated order quantity for specification review.

FAQ

1. Is EPDM better than Neoprene for outdoor applications?

Yes, when UV, ozone, and outdoor weathering are the main concerns. EPDM offers better resistance to these conditions. Neoprene is an option when the washer also needs to resist certain petroleum-based oils.

2. Can EPDM washers replace Neoprene washers?

In some outdoor sealing applications, yes. Before switching, check oil exposure, operating temperature, rubber hardness, washer dimensions, and required compression. EPDM is not a direct substitute where petroleum-based oil resistance is essential.

3. Can Neoprene washers be used for metal roofing?

Yes. Neoprene washers are used in some roofing applications, though EPDM is the usual choice for long sunlight and ozone exposure. Confirm the screw size, panel profile, and sealing geometry before deciding.

4. Can EPDM bonded washers prevent water leakage?

EPDM bonded washers seal around fasteners by compressing the rubber against the installation surface. Effective sealing needs the right washer dimensions, proper surface contact, and correct fastener tightening.

5. What information is needed for a custom bonded washer inquiry?

Provide the washer ID, OD, thickness, screw or fitting dimensions, rubber and metal material preferences, operating conditions, and estimated order quantity. Include a technical drawing or physical sample if available.

Request EPDM or Neoprene Bonded Washers

Contact KCS Enterprise with your washer dimensions, material requirements, operating conditions, and drawings or samples. Our team can review the specifications for standard or custom Bonded® Washer applications.
