橡膠拉帽系列
用於建築、機械、家電、太陽能、汽車...等
能有效防水、防鬆、減震的密封件。
產品說明
- Fastens blind holes and closed-end holes.
- Effective seal and cushion against similar and non-similar materials of assembled joints
- Tapered-end design for easier installation
- Absorbs shock and vibration. Reduces noise.
- Protects the drill surface
- Removable and re-insertable
- Insulates against electric and static surges.
- Ozone and ultra violet exposure light resistance
- Threaded brass or stainless steel insert molded into the material
- We also provide/sell the full set of the Bonded Rubber-Insert® with Screw and Washer.

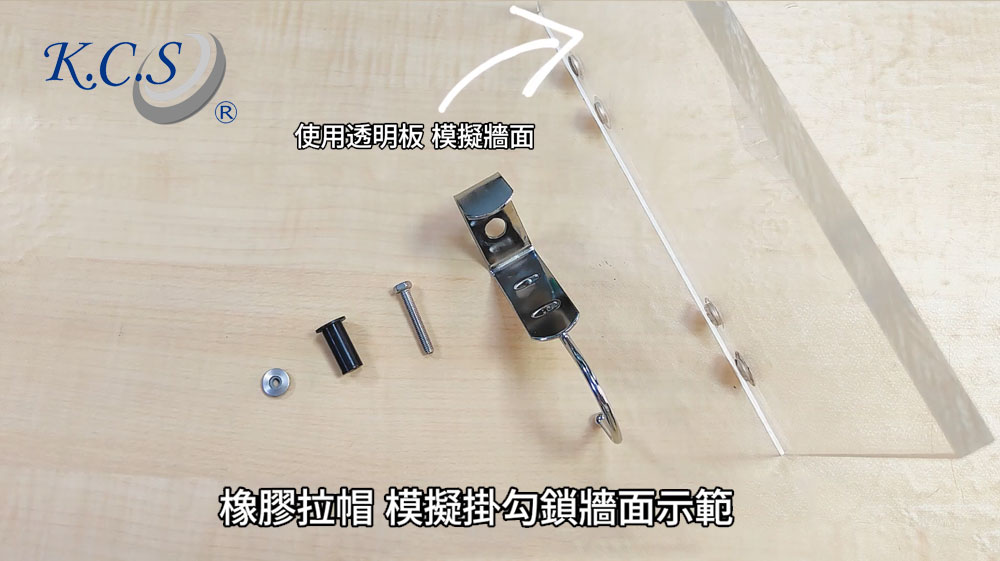

產品影片
規格說明
Materials: EPDM or neoprene/brass or stainless steel
unit: mm
| Item No. | Grip Range | A. Description | B. Body Diameter |
C. Overall Length |
D. Flange OD |
E. Flange Thickness |
||
|---|---|---|---|---|---|---|---|---|
| Min | Max | Standard | Metric | |||||
| KSC-0325 | 2.0 | 15.0 | 6-32 | M3 | 8.0 | 24.0 | 11.0 | 1.0 |
| KSC-0329 | 7.9 | 15.9 | 6-32 | M3 | 6.3 | 27.8 | 12.3 | 1.6 |
| KSC-0413 | 0.4 | 2.0 | 8-32 | M4 | 8.0 | 13.0 | 11.0 | 1.0 |
| KSC-0414 | 1.6 | 2.2 | 8-32 | M4 | 8.0 | 14.2 | 12.3 | 1.6 |
| KSC-0425 | 2.0 | 15.0 | 8-32 | M4 | 8.0 | 25.0 | 11.0 | 1.0 |
| KSC-0515 | 0.4 | 4.0 | 10-32 | M5 | 9.5 | 14.0 | 13.0 | 1.0 |
| KSC-0518 | 1.7 | 5.1 | 10-32 | M5 | 9.5 | 17.3 | 14.0 | 2.0 |
| KSC-0522 | 2.4 | 9.5 | 10-32 | M5 | 9.5 | 22.0 | 14.0 | 1.0 |
| KSC-0525 | 8.0 | 16.0 | 10-32 | M5 | 9.5 | 25.0 | 14.0 | 1.3 |
| KSC-0527 | 7.9 | 15.9 | 10-32 | M5 | 9.5 | 26.8 | 13.7 | 1.6 |
| KSC-0540 | 20.0 | 30.0 | 10-32 | M5 | 9.5 | 40.0 | 14.0 | 1.3 |
| KSC-0615 | 0.4 | 3.0 | 1/4-20 | M6 | 13.0 | 15.0 | 16.0 | 1.3 |
| KSC-0625 | 6.0 | 12.0 | 1/4-20 | M6 | 13.0 | 25.0 | 16.0 | 1.3 |
| KSC-0627 | 3.2 | 11.4 | 1/4-20 | M6 | 12.5 | 27.0 | 15.5 | 1.3 |
| KSC-0632 | 3.2 | 11.4 | 1/4-20 | M6 | 12.5 | 32.0 | 18.7 | 6.0 |
| KSC-0635 | 12.0 | 25.0 | 1/4-20 | M6 | 13.0 | 35.0 | 16.0 | 1.3 |
| KSC-0650 | 26.0 | 38.0 | 1/4-20 | M6 | 13.0 | 50.0 | 16.0 | 1.2 |
| KSC-0822 | 0.6 | 3.8 | 5/16-18 | M8 | 15.5 | 21.3 | 24.6 | 2.8 |
| KSC-0825 | 4.0 | 10.0 | 5/16-18 | M8 | 16.0 | 25.0 | 22 | 5.7 |
| KSC-0830 | 6.0 | 15.0 | 5/16-18 | M8 | 18.0 | 30.0 | 22.0 | 1.2 |
| KSC-0850 | 25.0 | 35.0 | 5/16-18 | M8 | 18.0 | 50.0 | 20.0 | 1.6 |
| KSC-1027 | 0.8 | 10.3 | 3/8-16 | M10 | 18.0 | 27.0 | 30.6 | 4.8 |
| KSC-1055 | 25.0 | 35.0 | 3/8-16 | M10 | 20.0 | 55.0 | 22.5 | 1.3 |
| KSC-1275 | 35.0 | 45.0 | 1/2-13 | M12 | 24.0 | 75.0 | 27.0 | 1.3 |
| KSC-12125 | 85.0 | 95.0 | 1/2-13 | M12 | 24.0 | 125.0 | 27.0 | 1.3 |
